FHS-M6-20, Self-Clinching Threaded Studs

Product code: FHS-M6-20
Manufacturer: PEM

値段: お問い合わせ



Thread Size x Pitch

M6 x 1

Thread Code

M6

Length Code

20

Material Code

S

Min. Sheet Thickness

1.6 mm

Hole Size in Sheet + 0.08

6 mm

Max. Hole in Attached Parts

6.60 mm

L - Length ± 0.4

20 mm

H ± 0.4

8.2 mm

S Max.

3 mm

Min. Dist. Hole C/L to Edge

7.9 mm

For Use in Sheet Hardness

HRB 70 / HB 125 or Less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380



FHS-M6-20, Self-Clinching Threaded Studs              FHS-M6-20, Self-Clinching Threaded Studs

FHS-M6-20, Self-Clinching Threaded Studs



Thread Size x Pitch

M6 x 1

Thread Code

M6

Length Code

20

Material Code

S

Min. Sheet Thickness

1.6 mm

Hole Size in Sheet + 0.08

6 mm

Max. Hole in Attached Parts

6.60 mm

L - Length ± 0.4

20 mm

H ± 0.4

8.2 mm

S Max.

3 mm

Min. Dist. Hole C/L to Edge

7.9 mm

For Use in Sheet Hardness

HRB 70 / HB 125 or Less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380




FHS-M6-20, Self-Clinching Threaded Studs

HIGHLIGHTS PRODUCTS

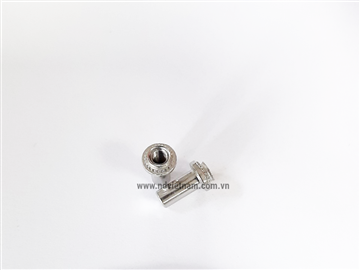

BS-M3-2, Self-Clinching Blind Fasteners
BS-M3-2, Self-Clinching Blind Fasteners
BS-M3-2, Self-Clinching Blind Fasteners
Price: Contact
See details  BUY NOW

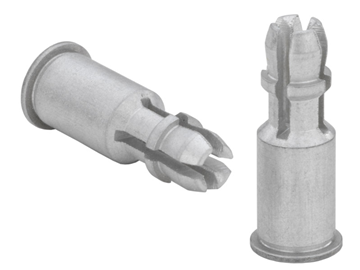

SSS-4MM-25ZI, SNAP-TOP® Standoffs
