Specifications:
|
Material
|
Zinc alloy
|
|
Finish
|
Powder coated
|
|
Color/Appearance
|
Black
|
|
Thread or Hole Type
|
M5 x 0.8
|
|
Mounting Style
|
Concealed Mount
|
|
Head Style
|
Phillips Recess #2
|
|
Compliance Specification
|
UL FTTA2 / FTTA8 Type 13
|
|
Hinge Style
|
In-line Knuckle Style
|
|
Class
|
96 - Removable Lift-Off Hinges
|
.png)
Description:

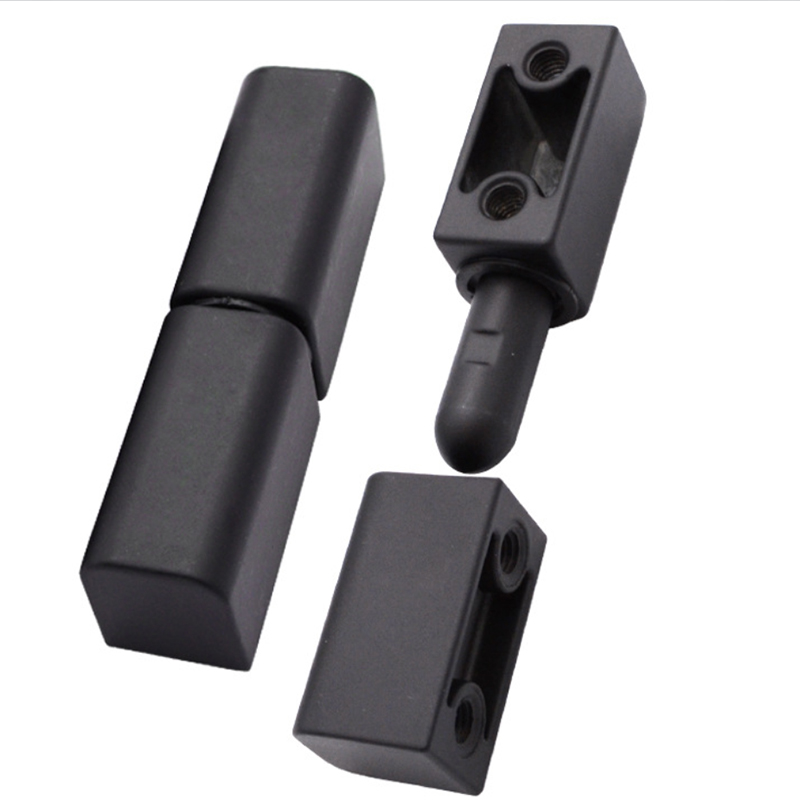

Southco’s 96 hinges allow doors to be removed quickly, easily and safely without the use of tools. A non lift-off configuration allows for permanent installation, and the hinges are available in multiple styles to satisfy a variety of applications.
Stainless steel, satin chrome and polished chrome provide a stylish finish and enhanced application aesthetic.
The 96 line provides designers with a range of choices for design flexibility in a cost-effective solution.
Allows for quick, easy door removal
Door can also be permanently installed
- Performance Details
|
|
Radial Load
|
Axial Load
|
|
Maximum static load
|
1300N (300lbf)
|
2200N (500lbf)
|
|
Avarage ultimate load
|
3500N (750lbf)
|
9300N (2100lbf)
|
- Installation Notes
Screws not supplied.
Maximum tightening torque of screw: 8.5N*m.
Calculate screw length using the following formula: Door thickness + 5 (.200)
In-line mount preparation: To allow for 180º rotation R or S must be < 25.4 (1.00).
|
Material
|
Zinc alloy
|
|
Finish
|
Powder coated
|
|
Color/Appearance
|
Black
|
|
Thread or Hole Type
|
M5 x 0.8
|
|
Mounting Style
|
Concealed Mount
|
|
Head Style
|
Phillips Recess #2
|
|
Compliance Specification
|
UL FTTA2 / FTTA8 Type 13
|
|
Hinge Style
|
In-line Knuckle Style
|
|
Class
|
96 - Removable Lift-Off Hinges
|
