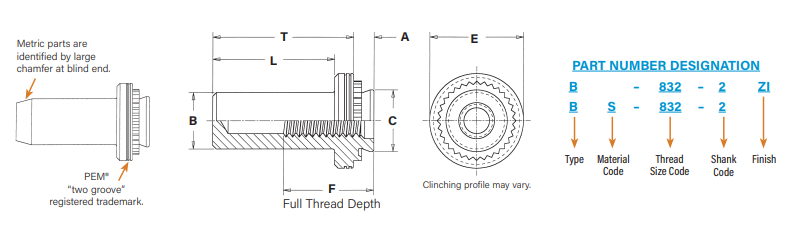

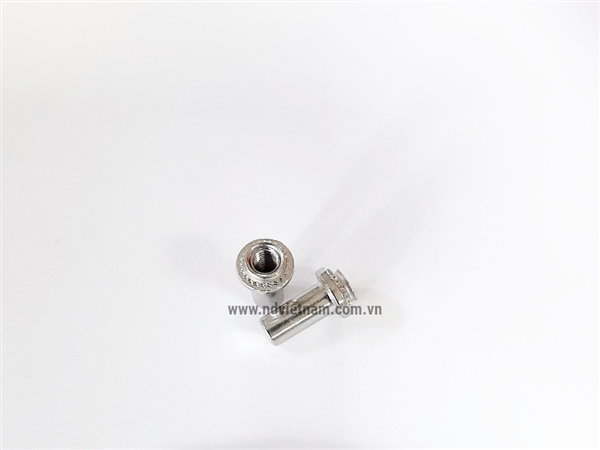

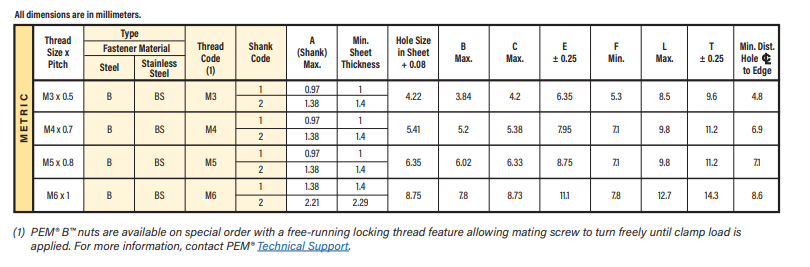

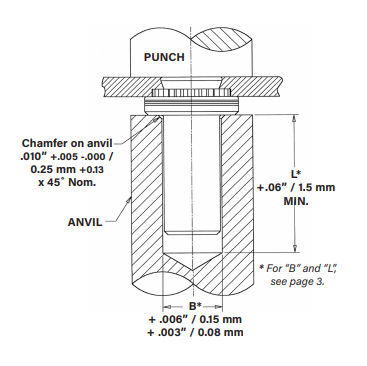

PEM blind fasteners employ the proven PEM self-clinching design and are easily installed in properly sized holes. Shanks of PEM fasteners act as their own pilots. PEM blind fasteners can be installed with any standard press applying squeezing forces between parallel surfaces.
PEM self-clinching blind fasteners are available in thread sizes from M3 through M6 in carbon or stainless steel.
|
Product code
|
BS-M3-2
|
|
Thread Size x Pitch
|
M3 x 0.5
|
|
Thread Code
|
M3
|
|
Shank Code
|
2
|
|
A (Shank) Max.
|
1.38 mm
|
|
Min. Sheet Thickness
|
1.4 mm
|
|
Hole Size in Sheet + 0.08
|
4.22 mm
|
|
B Max.
|
3.84 mm
|
|
C Max.
|
4.2 mm
|
|
E ± 0.25
|
6.35 mm
|
|
F Min.
|
5.30 mm
|
|
L Max.
|
8.5 mm
|
|
T ± 0.25
|
9.6 mm
|
|
Min. Dist. Hole C/L to Edge
|
4.8 mm
|
|
For Use in Sheet Hardness
|
HRB 70 / HB 125 or Less
|
|
Thread Specification
|
Internal, ANSI/ASME B1.13M, 6H
|
|
Fastener Material
|
300 Series Stainless Steel
|
|
Standard Finish
|
Passivated and/or tested per ASTM A380
|
|
Product code
|
BS-M3-2
|
|
Thread Size x Pitch
|
M3 x 0.5
|
|
Thread Code
|
M3
|
|
Shank Code
|
2
|
|
A (Shank) Max.
|
1.38 mm
|
|
Min. Sheet Thickness
|
1.4 mm
|
|
Hole Size in Sheet + 0.08
|
4.22 mm
|
|
B Max.
|
3.84 mm
|
|
C Max.
|
4.2 mm
|
|
E ± 0.25
|
6.35 mm
|
|
F Min.
|
5.30 mm
|
|
L Max.
|
8.5 mm
|
|
T ± 0.25
|
9.6 mm
|
|
Min. Dist. Hole C/L to Edge
|
4.8 mm
|
|
For Use in Sheet Hardness
|
HRB 70 / HB 125 or Less
|
|
Thread Specification
|
Internal, ANSI/ASME B1.13M, 6H
|
|
Fastener Material
|
300 Series Stainless Steel
|
|
Standard Finish
|
Passivated and/or tested per ASTM A380
|
