Materials:
- Swinghandle, fastener, dish, dust cover and cap: Zinc die, black
- Bolt: AISI 316
- Shaft: brass
- Washer, nut and screw: steel, zinc plated
- Flat external seal: NBR/ fiber
Advantages:

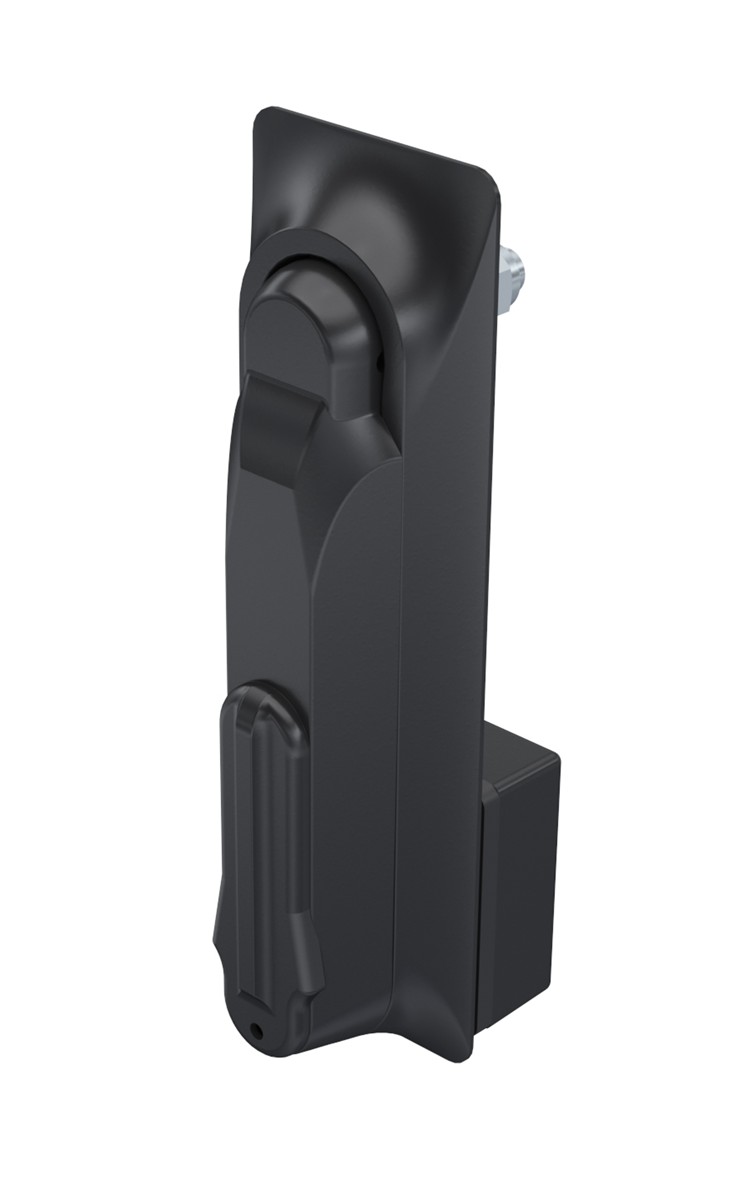

- Swinghandle with liftable operating lever, 90O rotation.
- For profile-cylinders 40 and 45mm
- Look able with profile-cylinder 45O or 90O cam position.
- RH/LH application.
- Complies with security test DIN EN 1630 RCII.
- Secured with a bolt againt vandalism.
- Saw up difficult because of steel insert (HRC 45)
- Seismic-proof according to GR-63-CORE, issue 4.
- IP65 according to DIN EN 60529.
.png)
- Swinghandle, fastener, dish, dust cover and cap: Zinc die, black
- Bolt: AISI 316
- Shaft: brass
- Washer, nut and screw: steel, zinc plated
- Flat external seal: NBR/ fiber
