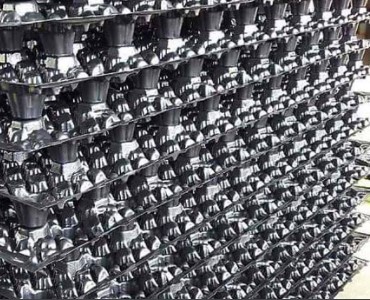

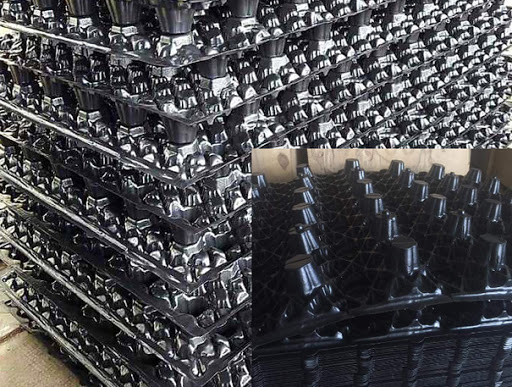

The honeycomb-type microbiological buffer is designed in the form of a fixed plate with a concave surface to increase the contact surface area. The honeycomb-shaped microorganism substrate is bonded into a block shaped like a honeycomb by many overlapping sheets through a specific PVC glue.
Honeycomb type microbiological substrate is placed on a support frame about 0.5m from the bottom of the tank, the bottom of the tank is a gas distribution system, through an air blower with a suitable capacity to ensure adequate oxygen supply microorganisms live and develop.
Honeycomb type microbiological substrate
Specifications:
|
Dimensions:
|
1,0m x 0,5m/panel
|
|
Surface Area:
|
110m2/m3
|
|
Thickness
|
0,35-0,5mm
|
|
Material:
|
PVC resin
|
|
Weight :
|
32 panels
|
|
Pressure
|
1,0 – 1,5 bar
|
|
Color:
|
black
|
|
Origin:
|
Vietnam/ Taiwan
|
Application:
In wastewater treatment to improve treatment efficiency increase system capacity without the need to build or expand works. The Honeycomb type microbiological substrate is added to the biological treatment, increasing the density of microorganisms in contact with the buffer material.
- Domestic wastewater treatment
- Hospital wastewater treatment
- Wastewater treatment industries
- Biological treatment in anaerobic tanks (UASB), Aeroten, bulk treatment equipment..
- Used in water purification, water supply, ...
- In new technology
|
