Plastic multi-faceted hollow sphere

Material: PP

Size (mm): D50, D100



Price: Contact

Plastic multi-faceted hollow sphere synthesized by the two half ball, half of each semi-circular fan-shaped leaves by a number of components, the upper and lower leaf staggered arrangement, the specific surface area than other large spherical packing.

As Water treatment equipment in a new and efficient packing, the power, chemical, paper, and environmental protection industry for removal of acid, deacidification, oil-water separator, desalination, pure water, waste water treatment device to use.

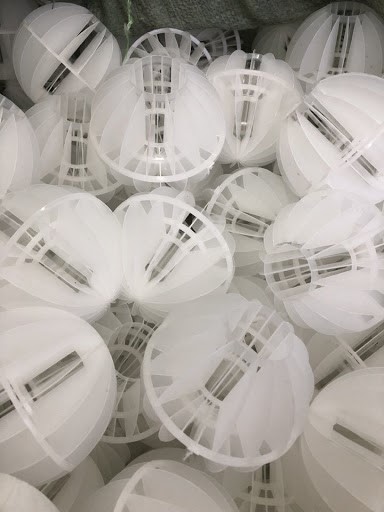

Plastic multi-faceted hollow sphere

D50- Plastic multi-faceted hollow sphere

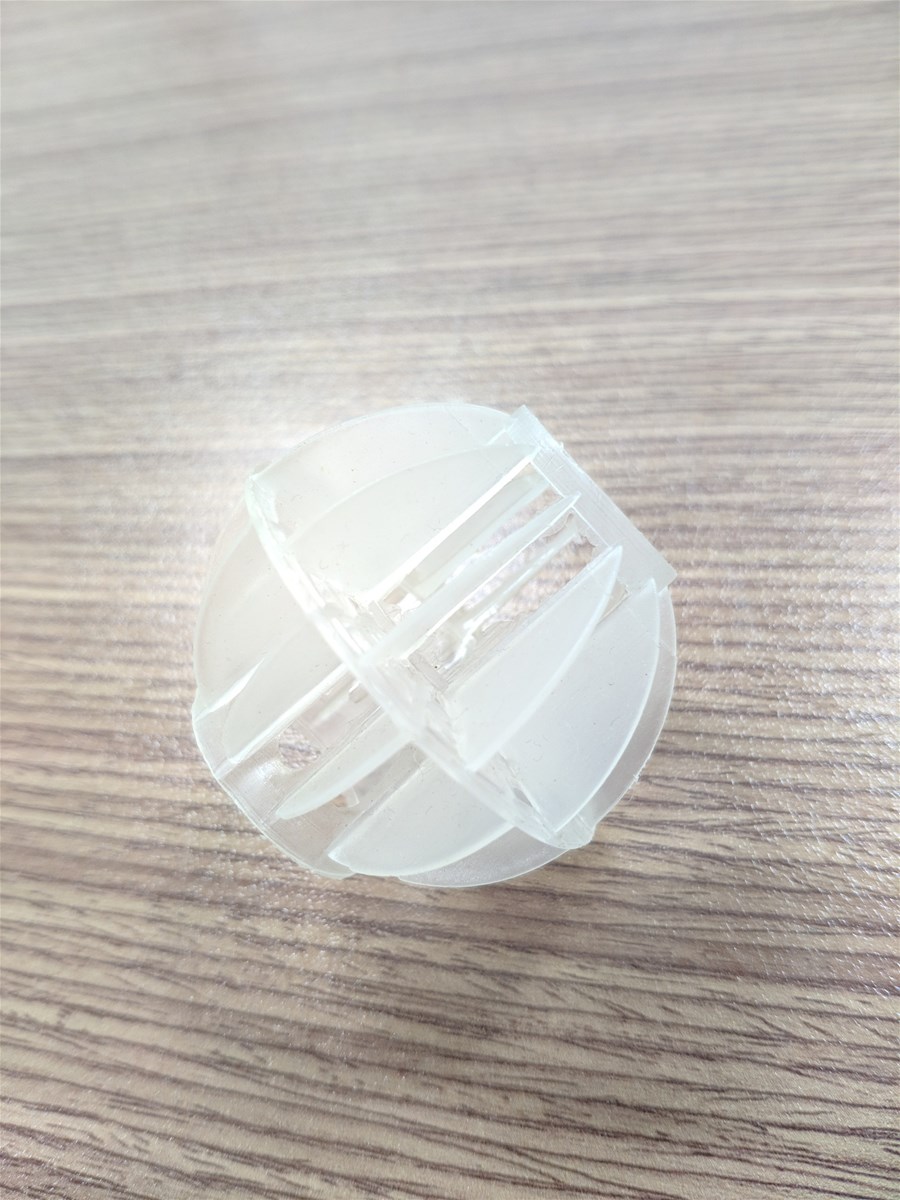

Plastic multi-faceted hollow sphere

D100- Plastic multi-faceted hollow sphere



Specifications:

Product name:

D50- Plastic multi-faceted hollow sphere

D100- Plastic multi-faceted hollow sphere

Size:

 D50mm

D100mm

Material

 PP

 PP

Color

black, white

black, white

Surface Area:

180-220m2/m3;

280m2/m3

Working temperature

5-60o C

5-60o C

Quantitative

8000unit/m3

600unit/m3

Origin

Vietnam

Vietnam



 Features

High voidage

Low pressure drop

Large flux

Low mass-transfer unit height

Uniform distribution of gas and liquid

High mass transfer performance

Lighter weight

Small wind and flowing resistance

Good hydrophilic surface.



Application of Plastic Multi-faceted Hollow Sphere for Wastewater Treatment

Chemical industry

Papermaking and environmental protection industries

Desulfurization carbon and acid

Oily-water separating

Seawater desalination

Purified and waste water treatment

Product name:

D50- Plastic multi-faceted hollow sphere

D100- Plastic multi-faceted hollow sphere

Size:

 D50mm

D100mm

Material

 PP

 PP

Color

black, white

black, white

Surface Area:

180-220m2/m3;

280m2/m3

Working temperature

5-60o C

5-60o C

Quantitative

8000unit/m3

600unit/m3

Origin

Vietnam

Vietnam
