Moving Bed Biofilm Reactor

Dimensions (DxH)  (mm): 25x10, 15x10, 10x10, 8x10, 15x15

Material: PE or PP

Price: Contact

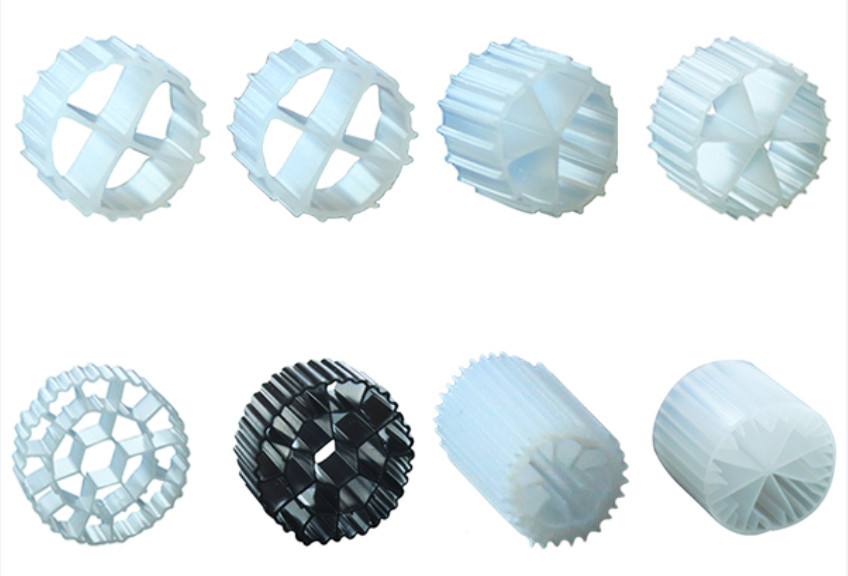

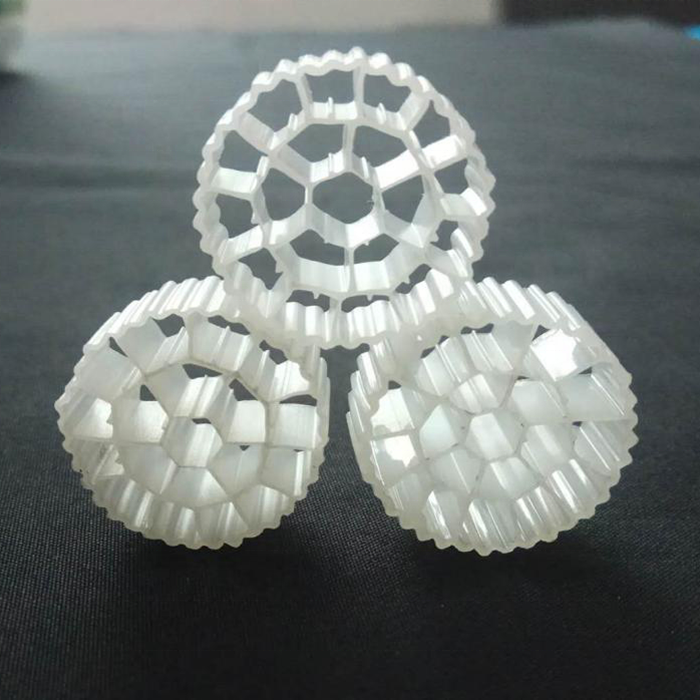

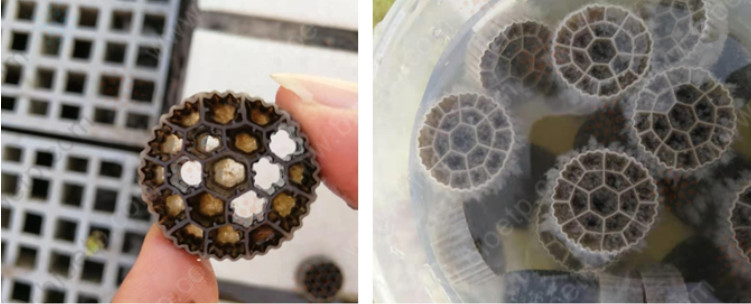

MBBR is a type of media used in the wastewater system, combining traditional aerobic or anoxic biological treatment and an adhesive mobile media to optimize the treatment efficiency of pollutant, solid components. Special treatment of nitrogen and phosphorus present in wastewater.

Product name

Moving Bed Biofilm Reactor

Dimensions (DxH)  (mm)

25x10, 15x10, 10x10, 8x10, 15x15

Material

PE or PP

Surface Area:

> 500-3000m2/m3

Weight (kg/m3)

95-200kg/m3

Working temperature

5-60oC

Service life (year)

>20 years

Origin

 Viet Nam



Moving Bed Biofilm Reactor

Moving Bed Biofilm Reactor

      Moving Bed Biofilm Reactor

Moving Bed Biofilm Reactor

Advantages

- Occupies a little area of biological tank
- Effective treatment of BOD, COD, Nitrogen, Phosphorus is high
- Simple operation process
- Low maintenance and maintenance costs
- Durable
- The amount of sludge generated is low
- Minimize odors in biological treatment
- The density of microorganisms in the biological tank is high, so the organic load of the MBBR media is very high
- Diversified types of microorganisms: Biofilm films develop depending on the type of organic matter and the organic load in the treatment tank.
- Usable for Anoxic and Aerobic (Aerobic) Biological Processes

Product name

Moving Bed Biofilm Reactor

Dimensions (DxH)  (mm)

25x10, 15x10, 10x10, 8x10, 15x15

Material

PE or PP

Surface Area:

> 500-3000m2/m3

Weight (kg/m3)

95-200kg/m3

Working temperature:

5-60oC

Service life (year)

>20 years

Origin:

 Viet Nam
