Spherical microbiological mattress

Size: D50-150mm
Material: PP, HDPE plastic

Price: Contact

Spherical microbiological mattress is a plastic material used for microorganisms to adhere and added in the wastewater treatment system (biological tank).
 Application: Used in aerobic biological treatment systems
- Materials: PP, or HDPE
+ White: is primary plastic, usually used in gas / dust separator tower, with acid gas vapor or basalt
+ Black: make the microorganism stick in the biological tank

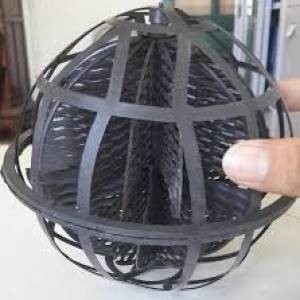

Spherical microbiological mattress

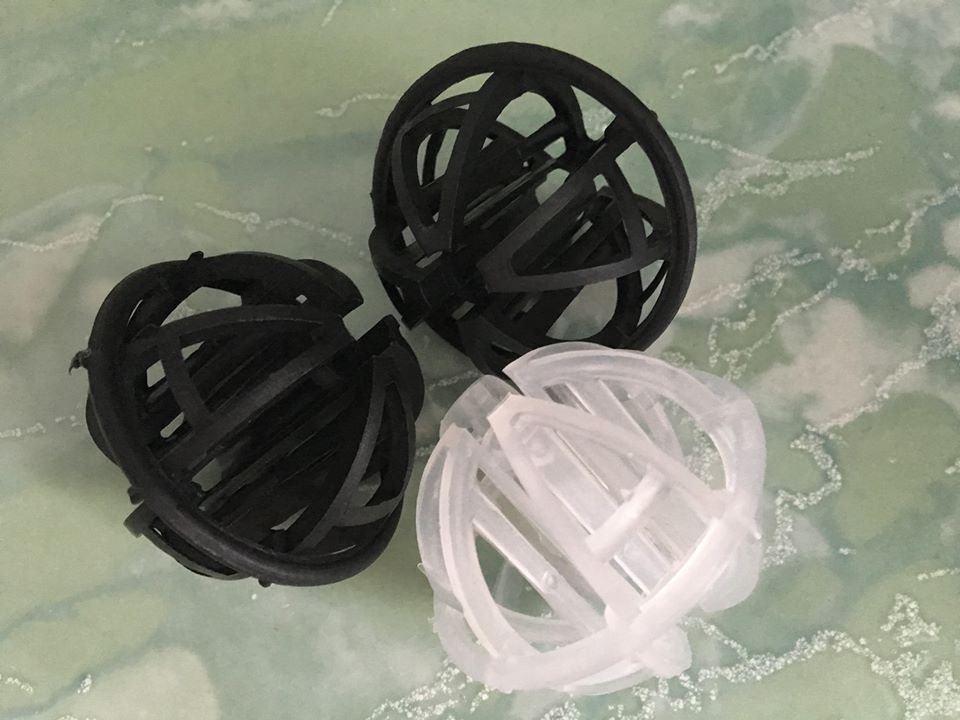

Spherical microbiological mattress D50mm

Spherical microbiological mattress

Spherical microbiological mattress D150mm

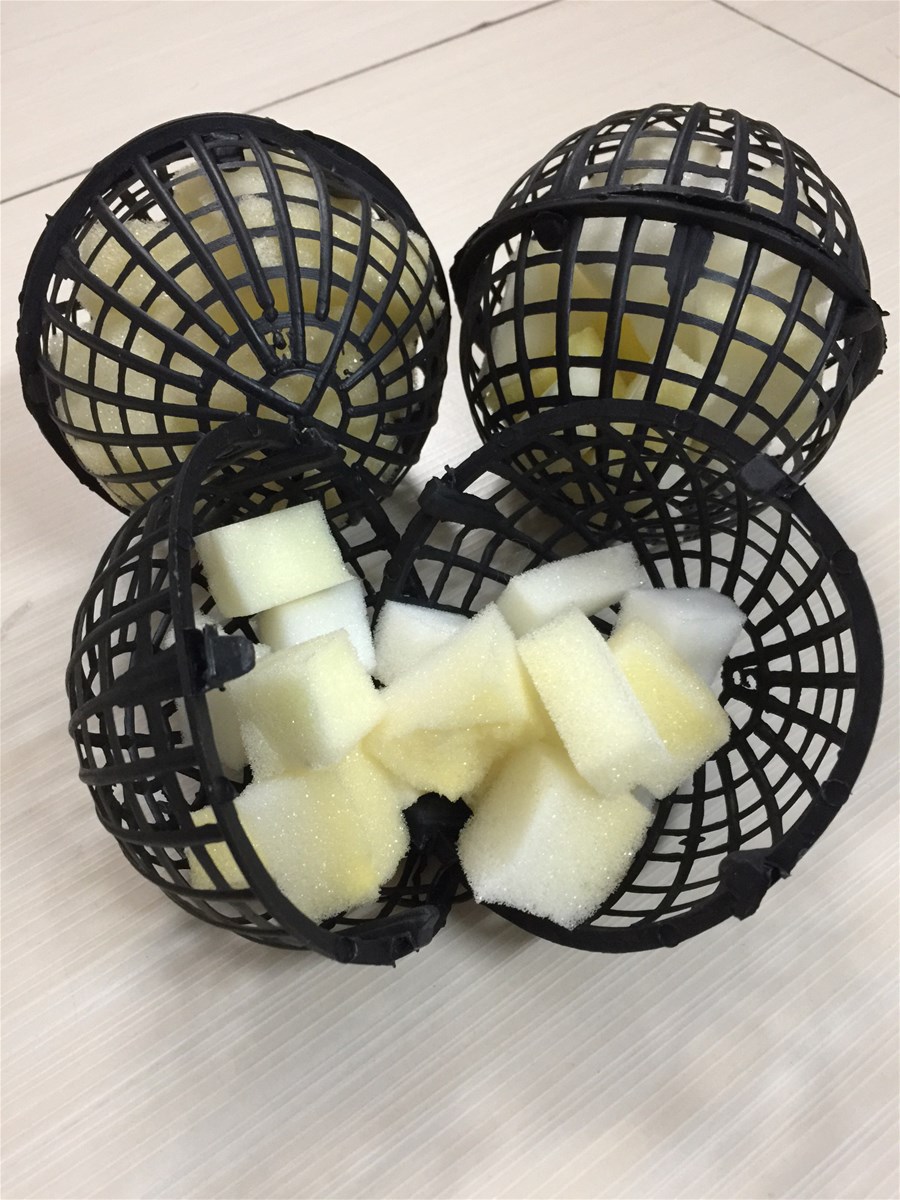

Spherical microbiological mattress

Spherical microbiological mattress D100mm

- Technical specifications:

Specification

Spherical microbiological mattress D50

Spherical microbiological mattress D100

Spherical microbiological mattress D150

Size

50mm

100mm

150mm

Material

PP or HDPE

PP or HDPE

PP or HDPE

Color

Black or white

Contact surface (m2/m3)

350

300

250

Weight (unit/m3)

6,000

600

300

Origin

Viet Nam

Viet Nam

Viet Nam

Density (%)

0.95 – 0.98

0.95 – 0.98

0.95 – 0.98



- Advantages:
+ Working in high pressure environment
+ Ability to self-clean, high circulation speed, prevent clogging.
+ Relatively large contact area
+ Increase the biomass in the biological tank, increase the richness of microorganisms
+ Resistant to corrosion, resistant to chemicals dissolved in water
+ The ball is cast monolithic, so it is not broken half, causing pipe blockage
+ Increase treatment efficiency of BOD, Nitrogen,
+ Long life,
+ Easy installation and operation

Specification

Spherical microbiological mattress D50

Spherical microbiological mattress D100

Spherical microbiological mattress D150

Size

50mm

100mm

150mm

Material

PP or HDPE

PP or HDPE

PP or HDPE

Color

Black or white

Contact surface (m2/m3)

350

300

250

Weight  (unit)

6,000

600

300

Origin

Viet Nam

Viet Nam

Viet Nam

Density (%)

0.95 – 0.98

0.95 – 0.98

0.95 – 0.98
