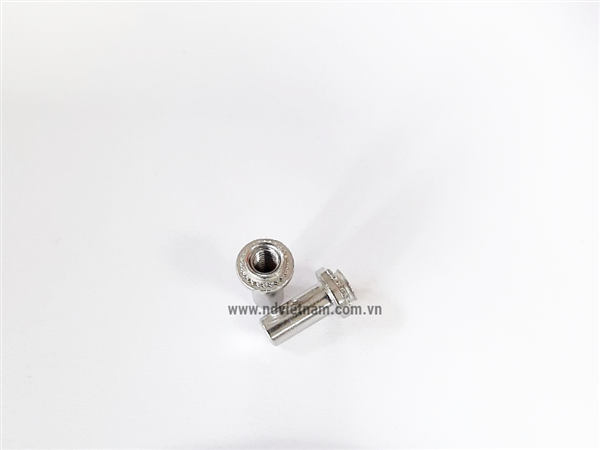

BS-M3-2, Self-Clinching Blind Fasteners

Price: Contact

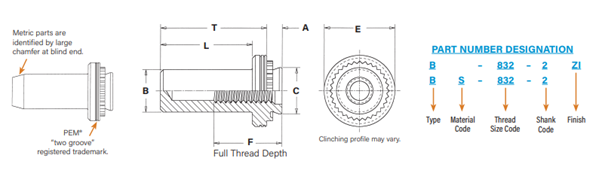

PEM blind fasteners employ the proven PEM self-clinching design and are easily installed in properly sized holes. Shanks of PEM fasteners act as their own pilots. PEM blind fasteners can be installed with any standard press applying squeezing forces between parallel surfaces.

PEM self-clinching blind fasteners are available in thread sizes from M3 through M6 in carbon or stainless steel

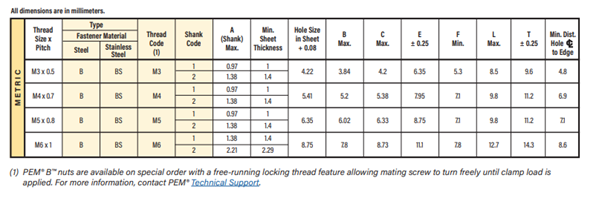

Thread Size x Pitch

M3 x 0.5

Thread Code

M3

Shank Code

2

A (Shank) Max.

1.38 mm

Min. Sheet Thickness

1.4 mm

Hole Size in Sheet + 0.08

4.22 mm

B Max.

3.84 mm

C Max.

4.2 mm

E ± 0.25

6.35 mm

F Min.

5.30 mm

L Max.

8.5 mm

T ± 0.25

9.6 mm

Min. Dist. Hole C/L to Edge

4.8 mm

For Use in Sheet Hardness1

HRB 70 / HB 125 or Less

Thread Specification

Internal, ANSI/ASME B1.13M, 6H

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380



BS-M3-2, Self-Clinching Blind Fasteners

Thread Size x Pitch

M3 x 0.5

Thread Code

M3

Shank Code

2

A (Shank) Max.

1.38 mm

Min. Sheet Thickness

1.4 mm

Hole Size in Sheet + 0.08

4.22 mm

B Max.

3.84 mm

C Max.

4.2 mm

E ± 0.25

6.35 mm

F Min.

5.30 mm

L Max.

8.5 mm

T ± 0.25

9.6 mm

Min. Dist. Hole C/L to Edge

4.8 mm

For Use in Sheet Hardness1

HRB 70 / HB 125 or Less

Thread Specification

Internal, ANSI/ASME B1.13M, 6H

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380



BS-M3-2, Self-Clinching Blind Fasteners
