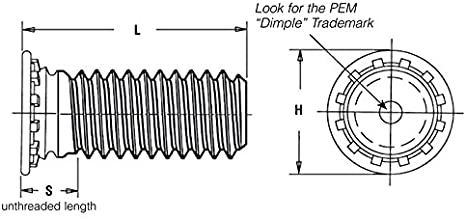

FHS-M5-15, Self-Clinching Threaded Studs

Product code: FHS-M5-15
Manufacturer: PEM

Price: Contact

Thread Size x Pitch

M5 x 0.8

Thread Code

M5

Length Code

15

Material Code

S

Min. Sheet Thickness

1 mm

Hole Size in Sheet + 0.08

5 mm

Max. Hole in Attached Parts

5.60 mm

L - Length ± 0.4

15 mm

H ± 0.4

6.5 mm

S Max.

2.7 mm

Min. Dist. Hole C/L to Edge

7.2 mm

For Use in Sheet Hardness

HRB 70 / HB 125 or Less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380





FHS-M5-15, Self-Clinching Threaded Studs                 FHS-M5-15, Self-Clinching Threaded Studs

FHS-M5-15, Self-Clinching Threaded Studs

Thread Size x Pitch

M5 x 0.8

Thread Code

M5

Length Code

15

Material Code

S

Min. Sheet Thickness

1 mm

Hole Size in Sheet + 0.08

5 mm

Max. Hole in Attached Parts

5.60 mm

L - Length ± 0.4

15 mm

H ± 0.4

6.5 mm

S Max.

2.7 mm

Min. Dist. Hole C/L to Edge

7.2 mm

For Use in Sheet Hardness

HRB 70 / HB 125 or Less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380



FHS-M5-15, Self-Clinching Threaded Studs
