SOS-M3-10, Thru-hole Threaded Standoffs

Product code: SOS-M3-10
Manufacturer: PEM

Price: Contact

Thread Size x Pitch

M3 x 0.5

Thread Code

M3

Length Code

10

Material Code

S

Min. Sheet Thickness

1 mm

Hole Size in Sheet + 0.08

4.22 mm

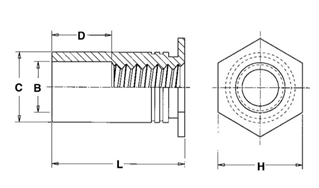

B - Counter-Bore Dia. ± 0.13

3.20 mm

C - 0.13

4.2 mm

D ± 0.25

4.00 mm

H Nom.

4.8 mm

L - Length +0.05 –0.13

10 mm

Min. Dist. Hole C/L to Edge

6 mm

For Use in Sheet Hardness

HRB 70 / HB 125 or Less

Thread Specification

Internal, ANSI/ASME B1.13M, 6H

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380



SOS-M3-10, Thru-hole Threaded Standoffs

Thread Size x Pitch

M3 x 0.5

Thread Code

M3

Length Code

10

Material Code

S

Min. Sheet Thickness

1 mm

Hole Size in Sheet + 0.08

4.22 mm

B - Counter-Bore Dia. ± 0.13

3.20 mm

C - 0.13

4.2 mm

D ± 0.25

4.00 mm

H Nom.

4.8 mm

L - Length +0.05 –0.13

10 mm

Min. Dist. Hole C/L to Edge

6 mm

For Use in Sheet Hardness

HRB 70 / HB 125 or Less

Thread Specification

Internal, ANSI/ASME B1.13M, 6H

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380
