BSO-M3.5-14ZI, Blind Threaded Standoffs

Size: M3.5-14

Finish: Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless

Price: Contact

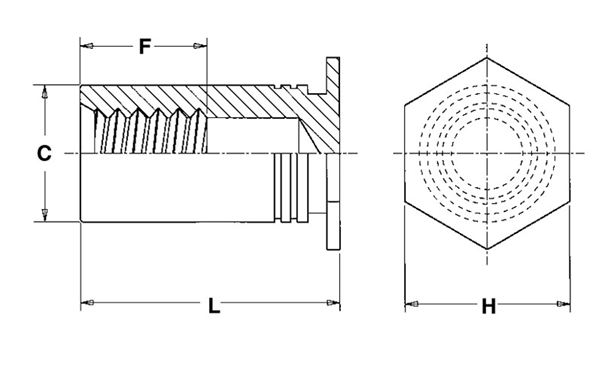

Thread Size x Pitch

M3.5 x 0.6

Thread Code

M3.5

Length Code

14

Min. Sheet Thickness

1 mm

Hole Size in Sheet + 0.08

5.41 mm

C - 0.13

5.39 mm

F Min.

6.50 mm

H Nom.

6.4 mm

L - Length +0.05 –0.13

14 mm

Min. Dist. Hole C/L to Edge

6.8 mm

For Use in Sheet Hardness1

HRB 80 / HB 150 or less

Thread Specification

Internal, ANSI/ASME B1.13M, 6H

Fastener Material

Heat-Treated Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
