HFH-M10-25ZI, High-Strength Studs

Product portfolio

Product code: HFH-M10-25ZI
Manufacturer: PEM

Price: Contact

Description
Specifications

Thread Size x Pitch

M10 x 1.5

Thread Code

M10

Length Code

25

Min. Sheet Thickness

2.3 mm

Hole Size in Sheet + 0.13

10.00 mm

Max. Hole in Attached Parts

11.50 mm

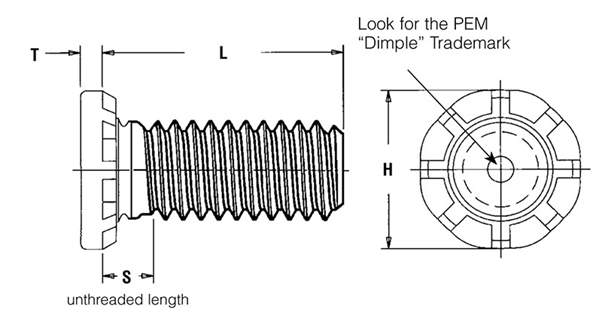

L - Length ± 0.4

25 mm

H ± 0.25

15.70 mm

S Max.

4.10 mm

T Max.

2.29 mm

Min. Dist. Hole C/L to Edge

13.70 mm

Thread Strength

900 MPa

For Use in Sheet Hardness

HRB 85 / HB 165 or Less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

Heat-Treated Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless

Thread Size x Pitch	M10 x 1.5
Thread Code	M10
Length Code	25
Min. Sheet Thickness	2.3 mm
Hole Size in Sheet + 0.13	10.00 mm
Max. Hole in Attached Parts	11.50 mm
L - Length ± 0.4	25 mm
H ± 0.25	15.70 mm
S Max.	4.10 mm
T Max.	2.29 mm
Min. Dist. Hole C/L to Edge	13.70 mm
Thread Strength	900 MPa
For Use in Sheet Hardness	HRB 85 / HB 165 or Less
Thread Specification	External, ASME B1.13M, 6g
Fastener Material	Heat-Treated Carbon Steel
Standard Finish	Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
