S-M8-1ZI, Self-Clinching Nuts

Product code: S-M8-1ZI
Manufacturer: PEM

Price: Contact

Thread Size x Pitch

M8 x 1.25

Thread Code

M8

Shank Code

1

A (Shank) Max.

1.38 mm

Rec. Min. Sheet Thickness

1.4 mm

Hole Size in Sheet + 0.08

10.5 mm

C Max.

10.47 mm

E ± 0.25

12.7 mm

T ± 0.25

5.47 mm

Min. Dist. Hole C/L to Edge

9.7 mm

For Use in Sheet Hardness

HRB 80 / HB 150 or less

Thread Specification

Internal, ASME B1.13M, 6H

Fastener Material

Heat-Treated Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless

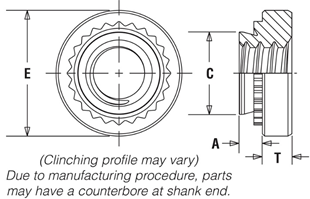

S-M8-1ZI, Self-Clinching Nuts            S-M8-1ZI, Self-Clinching Nuts

Thread Size x Pitch

M8 x 1.25

Thread Code

M8

Shank Code

1

A (Shank) Max.

1.38 mm

Rec. Min. Sheet Thickness

1.4 mm

Hole Size in Sheet + 0.08

10.5 mm

C Max.

10.47 mm

E ± 0.25

12.7 mm

T ± 0.25

5.47 mm

Min. Dist. Hole C/L to Edge

9.7 mm

For Use in Sheet Hardness

HRB 80 / HB 150 or less

Thread Specification

Internal, ASME B1.13M, 6H

Fastener Material

Heat-Treated Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
