PF11-M4-2, Large knob, spring-loaded

Product code: PF11-M4-2
Manufacturer: PEM

Price: Contact

Thread Size

M4 x 0.7

Type

Knurled Cap - PF11

Thread Code

M4

Screw Length Code

2

A (Shank) Max.

0.92 mm

Min. Sheet Thickness

0.92 mm

Hole Size in Sheet + 0.08

7.92 mm

C Max.

7.9 mm

E ± 0.25

13.06 mm

G ± 0.64

8.89 mm

P ± 0.64

3.05 mm

T1 Nom.

11.43 mm

T2 Nom.

16.26 mm

Driver Size

Slotted/#2 Phillips

Min. Dist. Hole C/L to Edge

8.38 mm

Standard Finish

Knob - Natural Finish
Retainer - Bright nickel over copper flash per ASTM B689
Screw - Passivated and/or tested per ASTM A380
Spring - Natural Finish

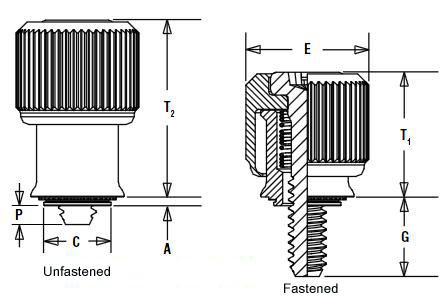

CAD View

Fastened

Thread Specification1

ANSI/ASME B1.13M, 6g

Material Knob

Aluminum

Material Retainer

Heat-Treated Carbon Steel

Material Screw

400 Series Stainless Steel

Material Spring

300 Series Stainless Steel

Finish Knob

Natural Finish

Finish Retainer

Bright nickel over copper flash per ASTM B689

Finish Screw

Passivated and/or tested per ASTM A380

Finish Spring

Natural Finish

For Use in Sheet Hardness

HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)



PF11-M4-2, Large knob, spring-loaded

Thread Size

M4 x 0.7

Type

Knurled Cap - PF11

Thread Code

M4

Screw Length Code

2

A (Shank) Max.

0.92 mm

Min. Sheet Thickness

0.92 mm

Hole Size in Sheet + 0.08

7.92 mm

C Max.

7.9 mm

E ± 0.25

13.06 mm

G ± 0.64

8.89 mm

P ± 0.64

3.05 mm

T1 Nom.

11.43 mm

T2 Nom.

16.26 mm

Driver Size

Slotted/#2 Phillips

Min. Dist. Hole C/L to Edge

8.38 mm

Standard Finish

Knob - Natural Finish
Retainer - Bright nickel over copper flash per ASTM B689
Screw - Passivated and/or tested per ASTM A380
Spring - Natural Finish

CAD View

Fastened

Thread Specification1

ANSI/ASME B1.13M, 6g

Material Knob

Aluminum

Material Retainer

Heat-Treated Carbon Steel

Material Screw

400 Series Stainless Steel

Material Spring

300 Series Stainless Steel

Finish Knob

Natural Finish

Finish Retainer

Bright nickel over copper flash per ASTM B689

Finish Screw

Passivated and/or tested per ASTM A380

Finish Spring

Natural Finish

For Use in Sheet Hardness

HRB 80 or Less (Hardness Rockwell “B” Scale) / HB 150 or Less (Hardness Brinell)
