CLS-M3-2, Self-Clinching Nuts

Product code: CLS-M3-2
Manufacturer: PEM

Price: Contact

Thread Size x Pitch

M3 x 0.5

Thread Code

M3

Shank Code

2

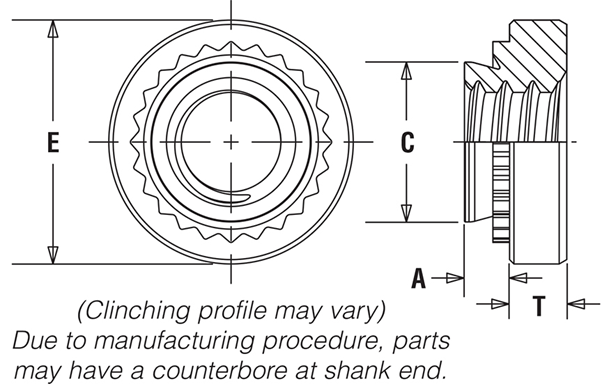

A (Shank) Max.

1.38 mm

Rec. Min. Sheet Thickness

1.4 mm

Hole Size in Sheet + 0.08

4.22 mm

C Max.

4.2 mm

E ± 0.25

6.35 mm

T ± 0.25

1.5 mm

Min. Dist. Hole C/L to Edge

4.8 mm

For Use in Sheet Hardness

HRB 70 / HB 125 or Less

Thread Specification

Internal, ASME B1.13M, 6H

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380





CLS-M3-2, Self-Clinching Nuts         CLS-M3-2, Self-Clinching Nuts



Thread Size x Pitch

M3 x 0.5

Thread Code

M3

Shank Code

2

A (Shank) Max.

1.38 mm

Rec. Min. Sheet Thickness

1.4 mm

Hole Size in Sheet + 0.08

4.22 mm

C Max.

4.2 mm

E ± 0.25

6.35 mm

T ± 0.25

1.5 mm

Min. Dist. Hole C/L to Edge

4.8 mm

For Use in Sheet Hardness

HRB 70 / HB 125 or Less

Thread Specification

Internal, ASME B1.13M, 6H

Fastener Material

300 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380
