FH-M6-20ZI, Self-Clinching Threaded Studs

Product code: FH-M6-20ZI
Manufacturer: PEM

Price: Contact

Thread Size x Pitch

M6 x 1

Thread Code

M6

Length Code

20

Min. Sheet Thickness

1.6 mm

Hole Size in Sheet + 0.08

6 mm

Max. Hole in Attached Parts

6.60 mm

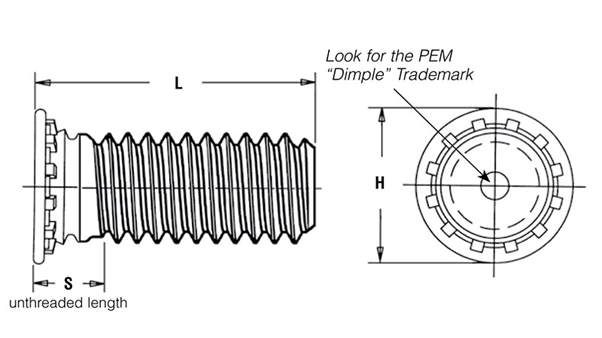

L - Length ± 0.4

20 mm

H ± 0.4

8.2 mm

S Max.1

3 mm

Min. Dist. Hole C/L to Edge

7.9 mm

For Use in Sheet Hardness

HRB 80 / HB 150 or less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

Heat-Treated Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless



FH-M6-20ZI, Self-Clinching Threaded Studs                  FH-M6-20ZI, Self-Clinching Threaded Studs



Thread Size x Pitch

M6 x 1

Thread Code

M6

Length Code

20

Min. Sheet Thickness

1.6 mm

Hole Size in Sheet + 0.08

6 mm

Max. Hole in Attached Parts

6.60 mm

L - Length ± 0.4

20 mm

H ± 0.4

8.2 mm

S Max.1

3 mm

Min. Dist. Hole C/L to Edge

7.9 mm

For Use in Sheet Hardness

HRB 80 / HB 150 or less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

Heat-Treated Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
