FH-M8-25ZI, Self-Clinching Threaded Studs

Product code: FH-M8-25ZI
Manufacturer: PEM

Price: Contact

Thread Size x Pitch

M8 x 1.25

Thread Code

M8

Length Code

25

Min. Sheet Thickness

2.40 mm

Hole Size in Sheet + 0.08

8 mm

Max. Hole in Attached Parts

8.60 mm

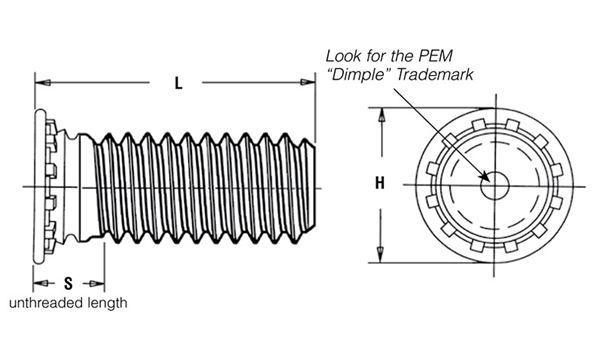

L - Length ± 0.4

25 mm

H ± 0.4

9.6 mm

S Max.

3.70 mm

Min. Dist. Hole C/L to Edge

9.60 mm

For Use in Sheet Hardness

HRB 80 / HB 150 or less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

Heat-Treated Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless



FH-M8-25ZI, Self-Clinching Threaded Studs              FH-M8-25ZI, Self-Clinching Threaded Studs

Thread Size x Pitch

M8 x 1.25

Thread Code

M8

Length Code

25

Min. Sheet Thickness

2.40 mm

Hole Size in Sheet + 0.08

8 mm

Max. Hole in Attached Parts

8.60 mm

L - Length ± 0.4

25 mm

H ± 0.4

9.6 mm

S Max.

3.70 mm

Min. Dist. Hole C/L to Edge

9.60 mm

For Use in Sheet Hardness

HRB 80 / HB 150 or less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

Heat-Treated Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless
