FH4-M5-12, Self-Clinching Studs for Stainless Steel Sheets

Product code: FH4-M5-12
Manufacturer: PEM

Price: Contact

Thread Size x Pitch

M5 x 0.8

Thread Code

M5

Length Code

12

Material Code

4

Sheet Thickness

1.00 to 2.40 mm

Hole Size in Sheet + 0.08

5 mm

Max. Hole in Attached Parts

5.3 mm

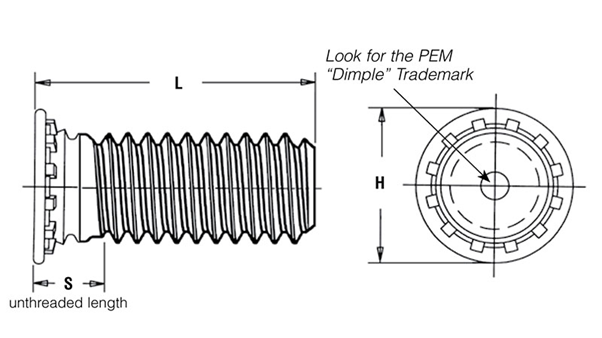

L - Length ± 0.4

12 mm

H ± 0.4

6.5 mm

S Max.

2.7 mm

Min. Dist. Hole C/L to Edge

7.2 mm

For Use in Sheet Hardness

HRB 92 / HB 195 or Less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

400 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380



FH4-M5-12, Self-Clinching Studs for Stainless Steel Sheets                     FH4-M5-12, Self-Clinching Studs for Stainless Steel Sheets



Thread Size x Pitch

M5 x 0.8

Thread Code

M5

Length Code

12

Material Code

4

Sheet Thickness

1.00 to 2.40 mm

Hole Size in Sheet + 0.08

5 mm

Max. Hole in Attached Parts

5.3 mm

L - Length ± 0.4

12 mm

H ± 0.4

6.5 mm

S Max.

2.7 mm

Min. Dist. Hole C/L to Edge

7.2 mm

For Use in Sheet Hardness

HRB 92 / HB 195 or Less

Thread Specification

External, ASME B1.13M, 6g

Fastener Material

400 Series Stainless Steel

Standard Finish

Passivated and/or tested per ASTM A380
