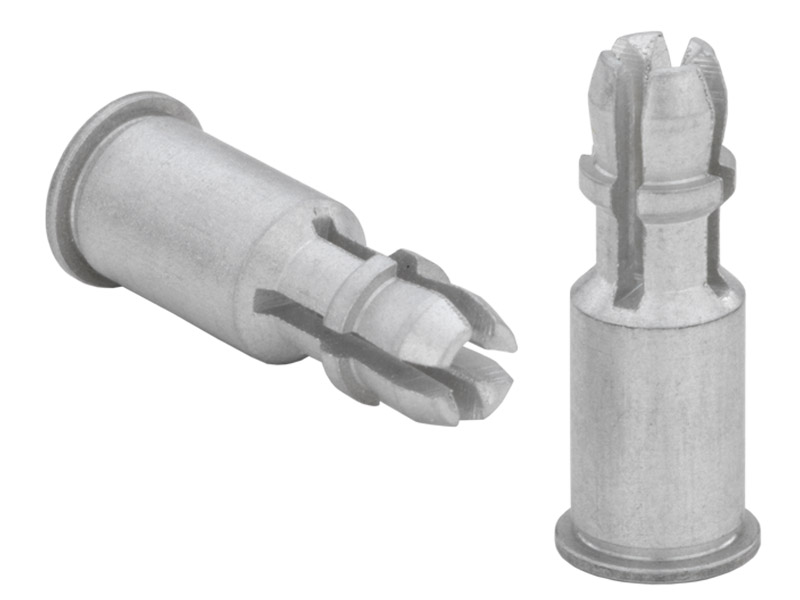

SSS-4MM-25ZI, SNAP-TOP® Standoffs

Product code: SSS-4MM-25ZI
Manufacturer: PEM

Price: Contact





Panel 1 (Bottom) Thickness Min.

1.00 mm

Panel 1 (Bottom) Mounting Hole B + 0.08

5.41 mm

Panel 2 (Top) Thickness Range

1.00 to 1.80 mm

Panel 2 (Top) Mounting Hole A +0.08

4.00 mm

Panel 1 (Bottom) Hardness Max.

HRB 60 / HB 107

Panel 2 (Top) Hardness Max.

No limit

Panel 1 Material

Metal

Panel 2 (Top) Material

PC Board or Metal

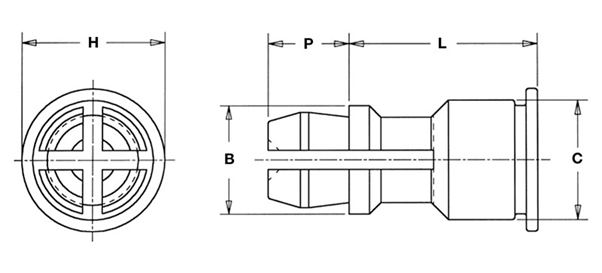

L - Length ± 0.13

25 mm

B ± 0.13

4.78 mm

C Max.

5.39 mm

H ± 0.13

6.35 mm

P ± 0.13

3.58 mm

Panel 1 (Bottom) Edge Distance C1 Min.

6.60 mm

Panel 2 (Top) Edge Distance C2 Min.

2.54 mm

Standard Material

Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless

Anvil Hole Diameter

5.49 - 5.56



SSS-4MM-25ZI, SNAP-TOP® Standoffs





Panel 1 (Bottom) Thickness Min.

1.00 mm

Panel 1 (Bottom) Mounting Hole B + 0.08

5.41 mm

Panel 2 (Top) Thickness Range

1.00 to 1.80 mm

Panel 2 (Top) Mounting Hole A +0.08

4.00 mm

Panel 1 (Bottom) Hardness Max.

HRB 60 / HB 107

Panel 2 (Top) Hardness Max.

No limit

Panel 1 Material

Metal

Panel 2 (Top) Material

PC Board or Metal

L - Length ± 0.13

25 mm

B ± 0.13

4.78 mm

C Max.

5.39 mm

H ± 0.13

6.35 mm

P ± 0.13

3.58 mm

Panel 1 (Bottom) Edge Distance C1 Min.

6.60 mm

Panel 2 (Top) Edge Distance C2 Min.

2.54 mm

Standard Material

Carbon Steel

Standard Finish

Zinc plated per ASTM B633, SC1 (5µm), Type III, colorless

Anvil Hole Diameter

5.49 - 5.56
